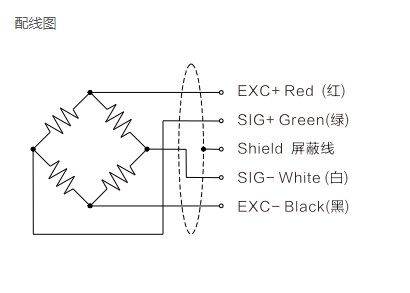

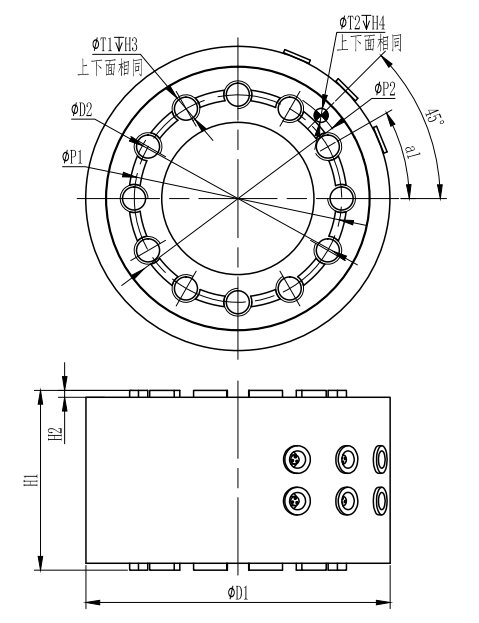

| 量程 | H1 | D1 | H2 | P1 | D2 | T1 | H3 | P2 | T2 | H4 | a1 |
Fx=Fy=30kN,Fz=100kN
Mx=My=1.5kN.m Mz=1kN.m | 52 | 88 | 2 | 60±0.1 | 63-0.05 | M8 | 8 | 68+0.05 | 4H7 | 5 | 12×30° |
Fx=Fy=80kN,Fz=200kN
Mx=My=Mz=5kN.m | 60 | 124 | 90±0.1 | 95-0.05 | M12 | 10.5 | 103+0.05 |
Fx=fy=200kN,Fz=500kN
Mx=My=20kN.m,Mz=10kN.m | 82 | 169 | 130±0.1 | 136-0.05 | M16 | 22 | 145+0.05 |
Fx=Fy=300kN,Fz=1000kN
Mx=My=25kN.m,Mz=15kN.m | 112 | 180 | 145-0.05 | M20 | 16 | 155+0.05 | 7 |
Fx=Fy=500kN,Fz=1000kN
Mx=My=100kN.m,Mz=25kN.m | 180 | 250 | 5 | 200±0.2 | 205-0.1 |
| 30 | 220+0.05 | 6H7 | 8 |
Fx=Fy=500kN,Fz=4000kN
Mx=My=Mz=200kN.m | 180 | 352 | 280±0.2 | 300-0.5 | M30 | 30 | 280-0.05 | 8H7 | 10 | 16×22.5+11.25° |
